DICONAL^® FA-PV - Clamp for Sheet metal roofs with DIBt^® certification

Kalzip clamps for PV mounting Icon direct

Ⓐ Direct Mounting / horizontal

Kalzip clamps for PV mounting with P-40

Ⓑ with P-40 Profile level / vertical

FA-PV Application
Ⓐ Horizontal mounting of the modules with FA-PV directly on the Kalzip^® roof

Ⓑ Vertical mounting of the modules with additional profile level P-40 on the Kalzip^® roof

With the original FA-PV clamps all Kalzip^® roof warranties remain intact with DIBt^® certification Nr. Z-14.4-560.

Dowload Documents:

DIBt^® certification Z-14.4-560 (Kalzip German)
DIBt^® certification Z-14.4-827 (DICONAL^® German)
DIBt^® certification Z-14.4-827 (DICONAL^® English)
Kalzip^® Data collection sheet (German)
Tender text (German)
Data sheet FA-PV (0,6 MB) (English)
Data sheet collection DICONAL^® System complete (6 MB) (German)

Download Page (Flyer, Data sheets, Data collection sheet, Measurement sheet, GTC (German))

NEW! Kalzip^® clamp with DICONAL^® profile cross-section- The advantages.

Utilization of original accessories
Modules can be mounted directly on the short rail in application Ⓐ or
with a P-40 profile level they can be mounted flexible and independend of the standing seams Ⓑ
tested components
DIBt^® certification Z-14.4-560
System-compliant load transfer of the PV installtion into the roof skin
Functionality of the Kalzip^® roofing is not affected
Perfect Interface offers a connection to the complete DICONAL^® PV-mounting system
more options for extending a new or existing Kalzip^® roof with a PV solution
FA-PV can be carried out regardless of the position of the roof retaining elements (clip)

NEW! Kalzip^® + DICONAL^® easyly fits perfect!
For Kalzip^® roofs DICONAL^® offers FA-PV, the original mounting clamp in combination with the DICONAL^® profile cross section.

The new clamp combines 2 products in one and allows the instant mounting of modules in horizontal orientation directly on the standing seam clamp. The mounting solution for framed modules on Kalzip^® roofs easyly fits perfect!

The profile cross-section is compatible to all DICONAL^® products i.e. all module clamps. By the "interface" and connectors profile levels or elevations can be carried out.

Technical information

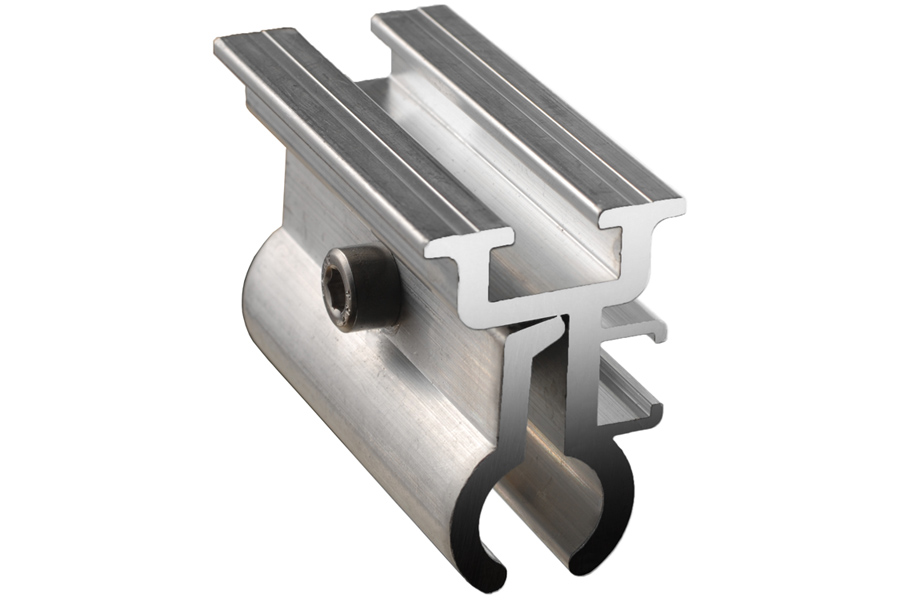

FA-PV roof clamp for Kalziproofs.
80 mm wide roof clamp and profile for module fastening.
71 mm height from roof surface to bottom edge of module.
37 mm height from flange to bottom edge of module.
Clamp FA-PV material: ENAW 6063
Screw material: V2A
Tightening torque: 15 Nm (at reduced speed, tighten to flange *screwing speed)

Using the original FA-PV clamp maintains the warranty of Kalzip^®roofs.
DIBt^® approval Nr. Z-14.4-560.

Note:
Used for the non-penetrative anchoring of attachments, especially supporting structures for solar systems or walkways on Kalzip^® standing seam profile roofs Z-14.1-181.
The load-bearing capacity of the substructure must be verified in accordance with the specifications in Z-14.1-181.

Installation FA-PV
1. Place the fixing clamp on the seam of the Kalzip^® profile and align it.
2. Tighten the screw to the specified torque.
3. The fit and functionality must be checked regularly.

Fixing clamp FA-PV according to Z-14.4-560

Tightening torque: 15 Nm (fix on the flange at low speed*)

* Note: Fasten the FA-PV clamp to the flange at a reduced rotation speed. If the rotation speed is too high, stainless steel screws and nuts may seize.

Practical tip Module clamps MMK + MEK
Applications Ⓐ enables direct installation of the module clamps on the FA-PV clamp. The flanges of the Kalzip^® roof profiles run parallel to the eaves. To prevent the module clamp from falling out, DICONAL^® recommends turning the module clamp screw 2-3 turns into the secured position.

Recommendation: Starting with the installation of the modules at the eaves makes installation easier. The module clamps are simply hooked onto the top edge of the modules and remain in position thanks to gravity. The next module can then simply be pushed under the module clamp from above.

Practical tip Module position
The module clamp should always be mounted centrally on the FA-PV terminal block. This results in a contact area Ⓜ of 30 mm width for the two modules on the left and right. Important! The contact area Ⓜ must be at least 10 mm.
