DICONAL® SF-65 Seam clamps for PV installation
Ⓐ Direct Mounting / Horizontal
Ⓑ with P-40 Profile / Vertikal
SF-65 Application
On standing seam roofs, the SF-65 offers
ⒶHorizontal installation directly onto SF-65
ⒷVertical installation using the P-40 profile
Application: Standing seam clamps for metal roofs
The DICONAL® SF-65 standing seam clamp is suitable for double-seam roofs made of titanium zinc, stainless steel, aluminium, etc. ... We are happy to supply other seam clamps on request.
Dowload Documents:
- Complete DICONAL® System data collection (6 MB)
- DOWNLOAD (leaflet, data sheets, data collection form, measurement sheet, terms and conditions)
Standing seam clamps - advantages
- For all sheet metal roofs with double standing seams
- Optimal load distribution thanks to the two
support feet with 3 mm rubber pads - The roof covering is not damaged
- The position of the clamps can be flexibly selected
along the standing seam - Application A for minimal use of material
- The 'interface' is compatible with the entire
DICONAL® PV mounting system and enables - the construction of a P-40 profile level in Application B
using the KV-40 clamp connector
Technical Specifications
We supply seam clamps for double-seam roofs made of titanium zinc, stainless steel, aluminium, etc. … The clamps, such as the mini clamp or the wide clamp, are supplied pre-assembled with KV-40 clamp connectors. We are happy to supply other seam clamps on request.
Material of FA-PV clamp: ENAW 6063
Material of screw: V2A
Standing seam clamps - references

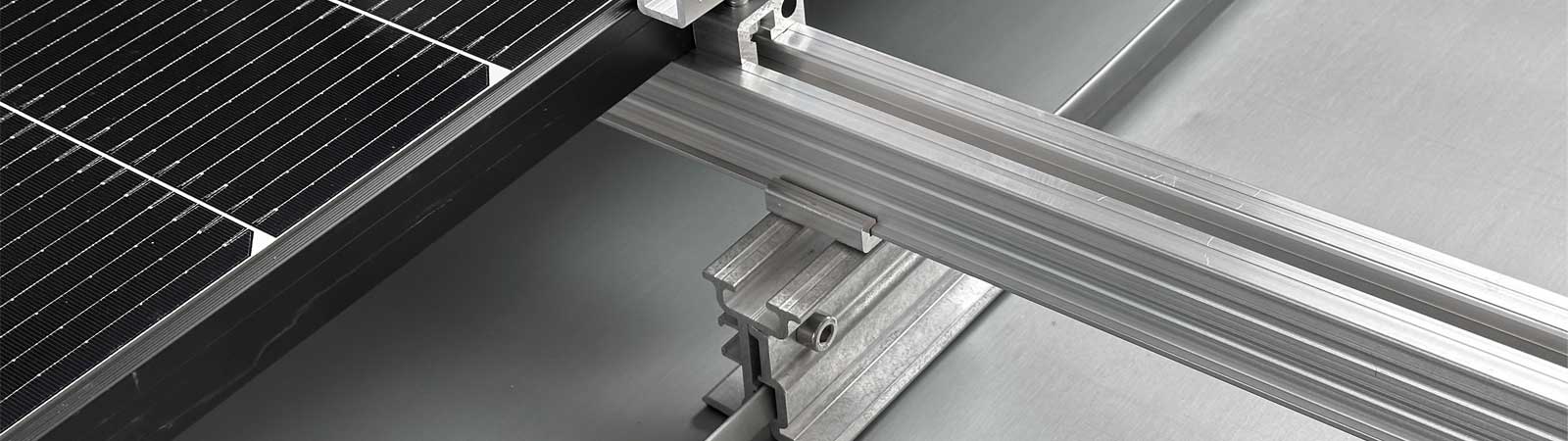

ⒶHorizontal installation directly onto SF-65
DICONAL® SF-65 / Standing seam clamps

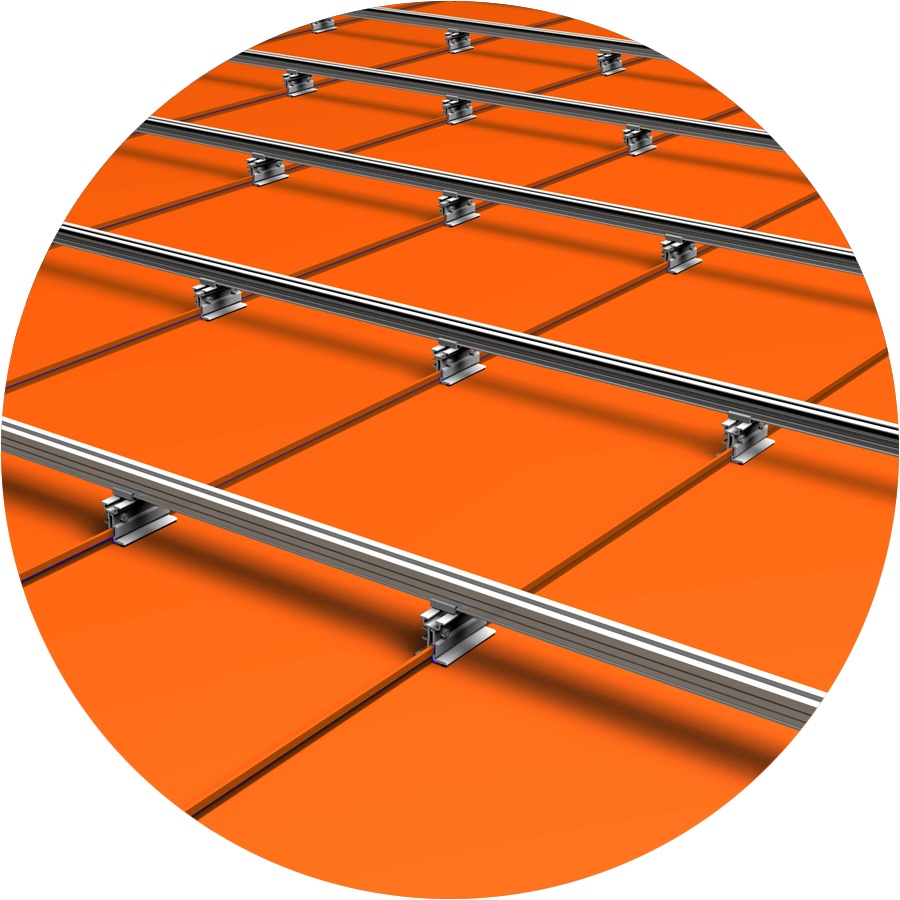

ⒷVertical installation using the P-40 profile
DICONAL® SF-65 / Standing seam clamps with KV-40 and P-40
